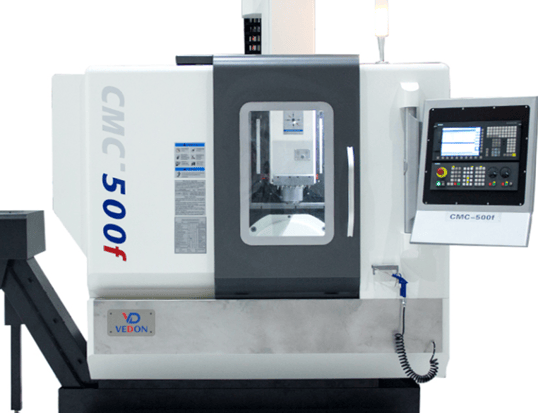

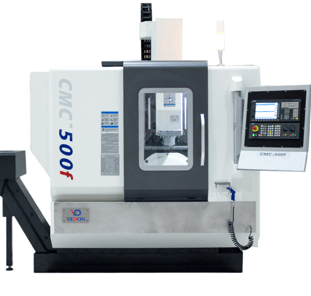

The VEDON CMC500F is a 5-axis vertical machining center (VMC). 5-axis machining centers are highly versatile and capable of complex, multi-sided machining in a single setup.

• 5-Axis Machining: This is the most significant feature. 5-axis machining allows for simultaneous movement of the workpiece along five axes (typically three linear and two rotational). This enables:

  • Complex Contouring: Machining complex shapes and surfaces, including 3D contours, with greater ease and precision.

  • Multi-Sided Machining: Machining multiple sides of a part in a single setup, reducing setup time and improving accuracy.

  • Reduced Tooling: Often allows for the use of shorter cutting tools, which increases rigidity and improves surface finish.

• Vertical Spindle Orientation: A common configuration for machining centers, offering good chip evacuation and ease of operation.

• CNC Control: Computer Numerical Control (CNC) enables automated, precise, and repeatable machining operations, leading to increased productivity and consistent part quality. Confirm the specific CNC control system used (e.g., FANUC, Siemens).

• High Precision: 5-axis VMCs are designed for high accuracy and repeatability, essential for complex and precise parts.

• Automatic Tool Changer (ATC): An ATC allows the machine to automatically switch between different cutting tools, reducing setup time and enabling complex machining operations. Confirm the tool capacity.

• Robust Construction: Built with a robust frame and components to withstand the stresses of machining and maintain accuracy.

• Coolant System: A coolant system helps dissipate heat and improve cutting performance.

Key Features and Benefits

Applications

The VEDON CMC500F is well-suited for complex part machining in industries such as:

• Aerospace: Manufacturing complex components like turbine blades, impellers, and structural parts.

• Mold and Die Making: Creating complex molds and dies with high accuracy and surface finish.

• Medical Devices: Machining intricate medical implants and instruments.

• Automotive: Producing complex parts for engines, transmissions, and other systems.

• General Manufacturing: Any application requiring complex, multi-sided machining.

Why Choose the VEDON CMC500F 5-Axis Vertical Machining Center

• Maximum Versatility: 5-axis machining offers the greatest versatility for complex part manufacturing.

• Increased Productivity: Reduced setups and automated tool changes significantly increase throughput.

• High Accuracy and Surface Finish: 5-axis machining allows for precise and high-quality surface finishes.

• Reduced Setup Times: Multi-sided machining in a single setup minimizes setup changes.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

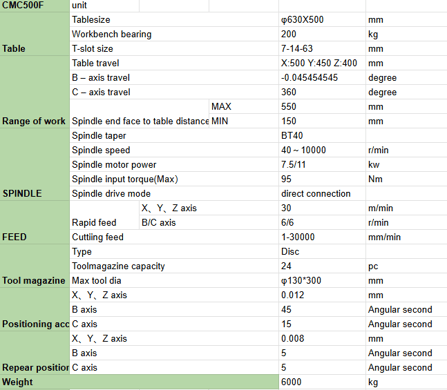

Specification
