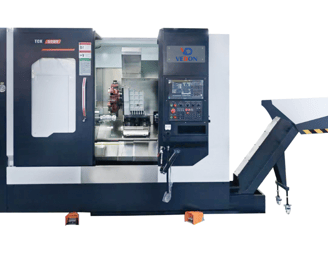

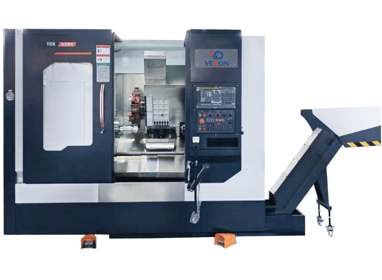

The VEDON TCK52DY is a slant bed CNC lathe turning machine equipped with a 12-station live turret. The "DY" designation likely indicates the inclusion of a Y-axis and live tooling capabilities. This type of CNC lathe is highly versatile and capable of performing complex machining operations in a single setup.

• Slant Bed Design: The slant bed provides exceptional rigidity and stability, essential for high-precision machining and heavy cutting. It also aids in chip flow and minimizes thermal distortion.

• CNC Control: Computer Numerical Control (CNC) enables automated, precise, and repeatable machining operations. This leads to increased productivity, consistent part quality, and reduced scrap.

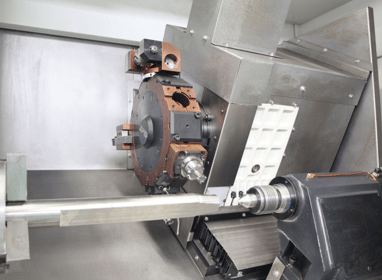

• 12-Station Live Turret: This is a key feature. The turret not only holds up to 12 cutting tools for turning operations but also incorporates live tooling capability. Live tooling allows the turret to drive rotating tools (like drills, milling cutters, and taps) for milling, drilling, and tapping operations on the lathe itself. This greatly expands the machine's capabilities and reduces the need for secondary operations on other machines.

• Y-Axis: The Y-axis provides movement perpendicular to the spindle axis, enabling off-center machining, complex contouring, and more versatile milling operations. The Y-axis, combined with live tooling, allows for machining features that would otherwise require a separate milling machine.

• High Precision: These machines are designed for high accuracy and repeatability in machining.

• Powerful Spindle: A robust spindle motor provides the power needed for both turning and live tooling operations across a range of materials.

• Rigid Construction: The machine's robust frame and components minimize vibrations during cutting, which is essential for good surface finishes and dimensional accuracy.

• Automatic Lubrication System: An automatic lubrication system ensures proper lubrication of critical components, reducing wear and tear.

• Coolant System: A coolant system helps dissipate heat and improve cutting performance, particularly when working with harder materials or performing heavy cuts.

Key Features and Benefits

Applications

The VEDON TCK52DY is ideal for complex part machining in industries such as:

• Aerospace: Manufacturing complex components requiring both turning and milling, like engine parts, structural components, and landing gear parts.

• Automotive: Producing complex parts for engines, transmissions, and other systems.

• Medical Devices: Creating intricate medical implants and instruments.

• Oil and Gas: Machining complex components for downhole tools and other equipment.

• General Manufacturing: Producing complex parts where minimizing setups and maximizing efficiency is crucial.

Why Choose the VEDON TCK52DY Slant Bed Cnc Lathe Turning Machine 12 Station Live Turret

• Maximum Versatility: The combination of turning, milling, drilling, and tapping capabilities in a single machine significantly increases versatility and reduces the need for multiple machines.

• Increased Productivity: Eliminating the need for secondary operations on a milling machine saves time and reduces part handling, leading to higher productivity.

• Improved Accuracy: Machining complex parts in a single setup improves accuracy and reduces the risk of errors associated with multiple setups.

• Reduced Setup Times: The live turret and Y-axis allow for complex parts to be machined with minimal setup changes.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

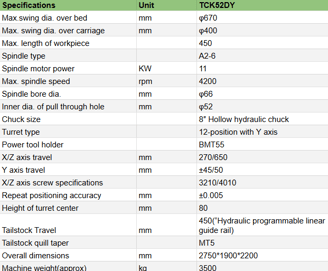

Specification
