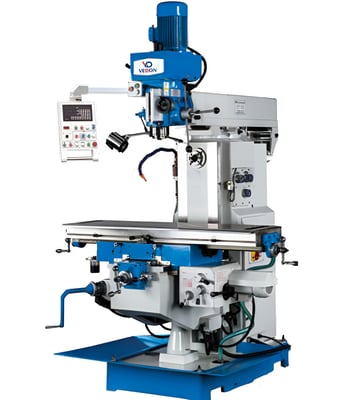

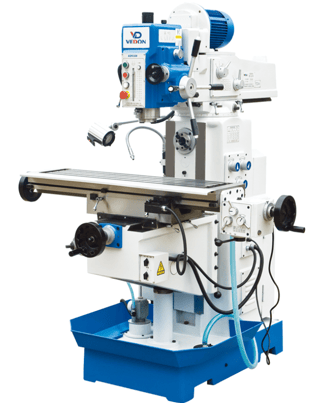

The VEDON X6332Z and XZ6326 are milling drilling machines, which are known for their versatility in performing various operations.

• Combined Milling and Drilling:

  • These machines offer the flexibility to perform both milling and drilling operations, saving space and cost compared to having separate machines.

  • This is particularly useful for workshops with limited space or for jobs requiring both drilling and milling.

• Turret Head (Likely):

  • Given the general category of "X" series VEDON machines, it is likely these machines utilize a turret head. This allows for angular adjustments and increased machining flexibility.

  • This enables various milling operations at different angles without extensive workpiece repositioning.

• Vertical Spindle:

  • The vertical spindle is well-suited for many common milling and drilling tasks.

• Rigid Construction:

  • Typically built with a robust frame, these machines minimize vibrations during cutting, contributing to improved accuracy and surface finishes.

• Variable Spindle Speeds:

  • A range of spindle speeds allows for optimizing cutting parameters for different materials and tools.

• Versatility:

  • These machines are capable of performing a variety of operations, including:

    • Face milling

    • End milling

    • Slotting

    • Drilling

    • Angular milling

• Table and Travel Variations:

  • The different model numbers (X6332Z, XZ6326) indicate variations in table size and travel, allowing you to choose a machine that best fits your workpiece size.

• Z-Axis Power Feed (X6332Z):

  • The "Z" in the X6332Z likely signifies a power feed on the Z-axis, which is a valuable feature for controlled and consistent depth cuts.

Key Features and Benefits

Applications

These milling and drilling machines are suitable for a wide range of applications, including:

• Tool and Die Making:

  • Creating molds, dies, and fixtures.

• General Manufacturing:

  • Machining various components.

• Job Shops:

  • Handling diverse machining tasks.

• Repair and Maintenance:

  • Performing repairs and modifications.

• Small Workshops:

  • Where space is limited.

• Educational Institutions:

  • For teaching machining skills.

Why Choose the VEDON X6332Z/XZ6326?

• Versatility:

  • The combined milling and drilling capabilities offer great versatility.

• Space Saving:

  • Reduces the need for separate machines.

• Cost-Effectiveness:

  • Can be more affordable than purchasing separate machines.

• Flexibility:

  • The turret head (if present) provides excellent flexibility.

• Z axis power feed:

  • The X6332Z model, has a power feed on the Z axis, greatly increasing ease of use.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

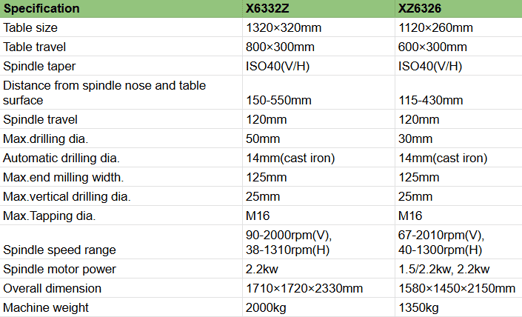

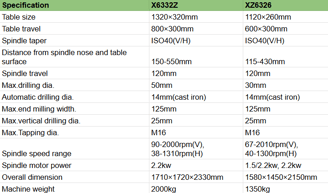

Specification
