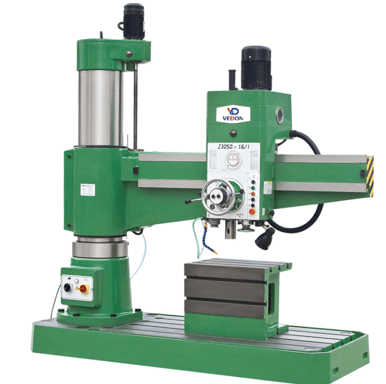

The VEDON Z3050×16/1 is a hydraulic radial drilling machine designed for heavy-duty drilling operations.

• Radial Arm Design: The radial arm is the defining feature. It allows the drilling head to be easily positioned over a large working area, eliminating the need to reposition the workpiece constantly. This saves significant time and effort, especially when drilling multiple holes or working on large or irregularly shaped parts.

• Hydraulic System: The hydraulic system provides smooth and powerful operation, making it easier to control the drilling process, especially when working with large diameter drills or tough materials. Hydraulic systems also often provide more precise feed control.

• Large Drilling Capacity: With a maximum drilling diameter of 50mm, this machine is well-suited for heavy-duty drilling tasks.

• Adjustable Spindle Speed and Feed: A wide range of spindle speeds and feed rates allows the operator to optimize the cutting parameters for different materials, drill sizes, and drilling operations, ensuring efficient material removal and maximizing tool life.

• Clamping System: A robust clamping system (likely hydraulic) securely holds the workpiece in place during drilling operations, preventing movement and ensuring accuracy.

• Rigid Construction: Built with a sturdy cast iron frame, base, and column, the Z3050×16/1 is designed to minimize vibrations during drilling, contributing to greater accuracy and better surface finishes. This is essential for heavy-duty drilling.

• Coolant System: A coolant system is typically included to help dissipate heat and improve drilling performance, especially when working with harder materials or drilling deep holes.

Key Features and Benefits

Applications

The VEDON Z3050×16/1 is ideal for heavy-duty drilling applications in various industries, including:

• Heavy Machinery Manufacturing: Drilling holes in large components for construction equipment, agricultural machinery, and other heavy equipment.

• Shipbuilding: Drilling holes in structural components of ships and vessels.

• Aerospace: Drilling holes in large parts for aircraft and spacecraft.

• Oil and Gas: Drilling holes in equipment and components used in oil and gas exploration and production.

• Structural Steel Fabrication: Drilling holes in steel beams and other structural members.

Why Choose the VEDON Z3050×16/1 Hydraulic Radial Drilling Machine Max.Drilling Diameter 50mm

• High Productivity: The radial arm design significantly increases productivity by allowing for quick and easy positioning of the drilling head.

• Heavy-Duty Capability: The large drilling capacity and robust construction make it suitable for demanding drilling tasks.

• Precision and Control: The hydraulic system and adjustable cutting parameters allow for precise control over the drilling process.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

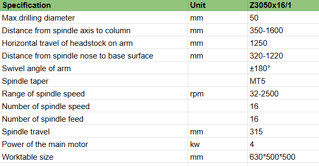

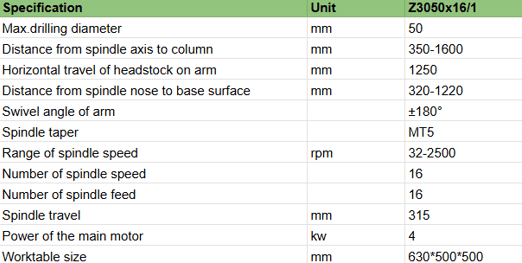

Specification
