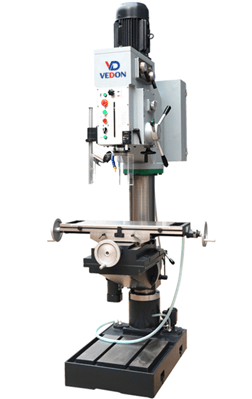

The VEDON ZX5040A and ZX5050A are vertical drilling milling machines, combining the functions of drilling and milling into a single machine. The "50mm" designation in the description indicates the maximum drilling diameter capability.

• Combined Drilling and Milling Functionality:

  • This is the primary advantage. These machines can perform both drilling and milling operations, offering versatility in a single machine tool.

  • This saves space and reduces the need for separate machines.

• Vertical Spindle Orientation:

  • Provides ease of operation for drilling and vertical milling tasks.

• Drilling Capacity:

  • The "40" and "50" in the model numbers likely refer to the maximum drilling diameter in millimeters (40mm and 50mm, respectively). This is a significant drilling capacity, suitable for a range of applications.

• Milling Capabilities:

  • These machines can perform various milling operations, including face milling, end milling, slotting, and contouring.

• Variable Spindle Speeds:

  • A range of spindle speeds allows for optimizing cutting parameters for different materials and tools.

• Rigid Construction:

  • Typically built with a robust frame, these machines minimize vibrations during cutting, contributing to accuracy.

• Adjustable Worktable:

  • Allows for proper work piece placement.

• Depth Stop:

  • Allows for repeatable drilling depths.

Key Features and Benefits

Applications

The VEDON ZX5040A/ZX5050A are suitable for a variety of applications, including:

• Tool and Die Making: Creating molds, dies, and fixtures.

• General Manufacturing: Machining various components.

• Job Shops: Handling diverse machining tasks.

• Repair and Maintenance: Performing repairs and modifications.

• Small Workshops: Where space is limited.

• Educational Institutions: For teaching machining skills.

Why Choose the VEDON Z5040A/Z5050A Vertical Drilling Machine Max.Drilling Diameter 50mm

• Versatility: Combining drilling and milling in one machine offers great versatility.

• Space Saving: Reduces the need for separate machines.

• Cost-Effective: Can be more affordable than purchasing separate drilling and milling machines.

• Adequate Drilling Capacity: The 50mm drilling capacity is suitable for many applications.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

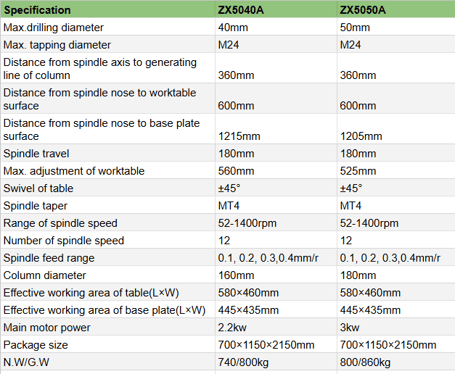

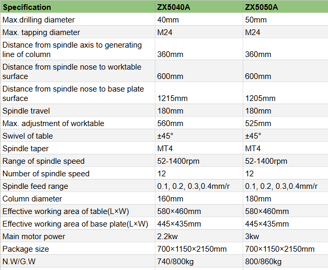

Specification
